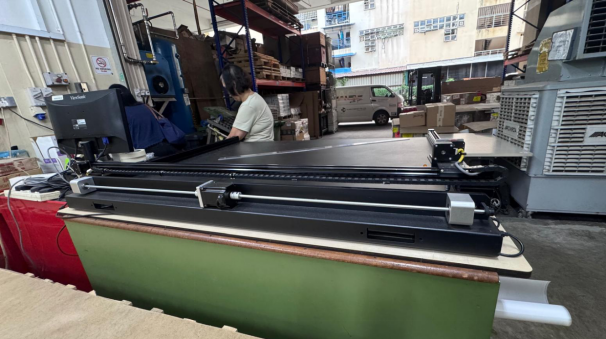

This case study and tutorial are contributed by Oliver Company Pte Ltd, a renowned die-cutting solutions provider from Singapore with over five decades of industry experience. Established in 1970, OliverCo has long been recognized for its precision, reliability, and craftsmanship in serving top printers, packaging companies, and manufacturers across the Asia-Pacific region. By integrating the UUNA TEK 3.0 Pen Plotter into their production workflow, OliverCo has elevated its design accuracy, streamlined prototyping, and strengthened its commitment to premium quality and efficiency — achieving faster, more consistent results for their clients.
The UUNA TEK 3.0 Pen Plotter is a professional-grade drawing and writing robot designed for artists, designers, and engineers who demand precision, speed, and reliability. This detailed step-by-step guide will walk you through everything from unboxing to your first production plot — ensuring optimal performance and long-term stability.
1. Unbox and Verify All Components
Carefully open the package to avoid damaging any components.
Confirm all items are included:
- UUNA TEK 3.0 Pen Plotter
- User manual
- USB data drive
- Magnet
- Power adapter
- Power connection cable
- Auxiliary regulator
Inspect for any shipping damage. If anything appears damaged, take photos for record and contact customer service.
2. Prepare Your Work Area
Place your UUNA TEK 3.0 pen plotter on a sturdy, level surface with sufficient clearance around it.
Ensure the workspace is clean, dust-free, and away from vibration or moisture.
Plan safe cable routing to your power outlet and computer to prevent tangling or obstruction.
3. Assemble the Hardware
Follow the user manual step by step to connect all parts — the setup is straightforward.
Attach the power adapter and auxiliary regulator as instructed.
If any part of the process seems unclear, refer to the online video guides or documentation provided by UUNA TEK.
4. Connect to Your Computer and Software
Connect the pen plotter to your computer via USB or wireless connection as instructed.
Launch your preferred design software (e.g., Impact 2016) and confirm that the plotter is recognized.
Load or open your vector design, artwork, or drawing file for plotting.
5. Configure Plotting Settings
Verify the measurement units (mm or inches) and ensure the scale is set to 100%, unless you need resizing.
Assign proper line types and pens — for example, outline vs. annotation layers.
Set the correct paper or media size and the origin point that matches your drawing layout.
6. Mount the Pen and Perform a Dry Run
Mount your pen according to the instructions. Ensure it’s secure, straight, and perpendicular to the paper.
Perform a dry run (without lowering the pen) if supported by your software. This ensures the travel path and orientation are correct before actual plotting.
7. Run a Test Plot for Calibration
Send a simple test file (a square, a circle, and 10 cm ruler marks).
Observe the motion — the pen should move smoothly with consistent pressure.
Measure the output lines to confirm accuracy. Note any deviations for your QC Log.
If required, adjust the pen pressure or height in small increments per the manual.
8. Start Your Production Plot
Load your final design file for plotting.
Double-check all settings: media size, pen configuration, and origin alignment.
Start the job and monitor the first minute to ensure smooth feeding and proper pen alignment.
9. Post-Run Maintenance
Cap or store the pen properly to prevent ink drying.
Clean the plotting surface to remove any dust or debris.
Power down the plotter if it won’t be used for an extended time.
10. Keep Software and Firmware Updated
Regularly update your UUNA TEK software and firmware when notified. The brand’s after-sales team proactively releases updates to improve compatibility and performance.
Performance Highlights — What Good Results Look Like
High-speed capability: Up to 15 in/s (38 cm/s) XY travel speed.
Native resolution: 2032 steps/inch (80 steps/mm) for ultra-precise motion.
Reproducibility: Typically better than 0.005 in (0.1 mm) at low speeds.
Pro Tip: For detailed or intricate artwork, reduce the plotting speed to achieve optimal reproducibility and cleaner line work.
Quick Troubleshooting Guide
Device not detected: Reconnect cables, restart both the plotter and computer, and confirm the correct driver and port in your software. (Impact 2016 typically connects smoothly.)
Lines appear mis-scaled: Verify unit and scale consistency between your CAD/CAM export and plotter settings.
Wobbly or inconsistent lines: Reseat the pen, check tip condition, and reduce speed for fine detail work.
Conclusion
Setting up your UUNA TEK 3.0 Pen Plotter is simple with the right preparation and calibration. Whether you’re producing technical drawings, generative art, or calligraphy, this high-precision plotter ensures smooth, consistent, and professional-quality results every time.
Stay updated with the latest software versions and maintenance tips from UUNA TEK to keep your machine performing at its best.
